FEATURES:

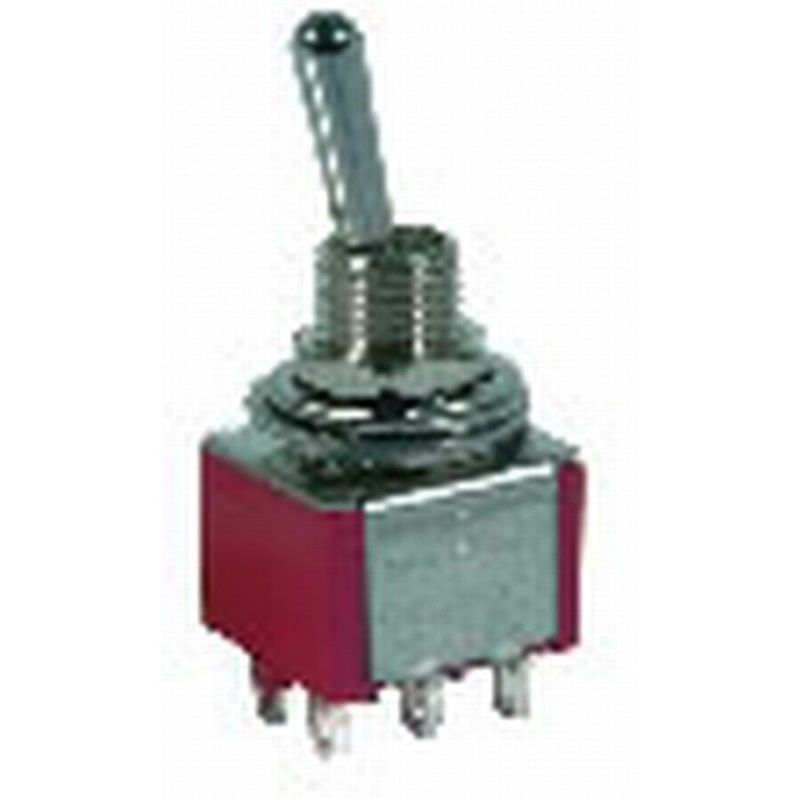

SOLDER TAG WITH THREADED BUSH
Brackets indicate switch position (on – on)
OPERATING TEMPERATURE:-30 degrees – +85 degrees Celsius
CONTACT RATING (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC
CONTACT RATING (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC
SWITCH MATERIALS CASE:Diallyl Phthalate (DAP) (UL94V-0)
TOGGLE HANDLE:Brass, chrome plated
BUSHING:Brass, nickel-plated
HOUSING:Stainless Steel
TERMINALS:Switch support components: Brass, electro-tin plated (for solderability)
CONTACTS:Fixed and moving, Silver-plated over copper alloy (standard);Fixed and moving, gold plated over nickel-plated alloy.
Specifications:
| Switch Type |
Toggle |
| Poles / Contacts |
1 pole |
| Throws / Positions |
1pos |
| Cycle Life |
30000 cycles |
| Contact Resistance |
20 |
| Insulation Resistance |
1000 |
| Switch Connection |
Solder Tags |
| Dielectric Strength |
1000V |
| Actuator Length |
12.7mm |
| Actuator Width |
6.86mm |
| Cost: |
$25 |
| Free Shipping |
We offer free shipping on orders over $30. Please check the free - shipping eligibility at checkout. |
| Delivery Time: |
It usually takes [3-5] business days for standard shipping. Please note that this is an estimated time frame and may be affected by local holidays, and unforeseen circumstances. |
