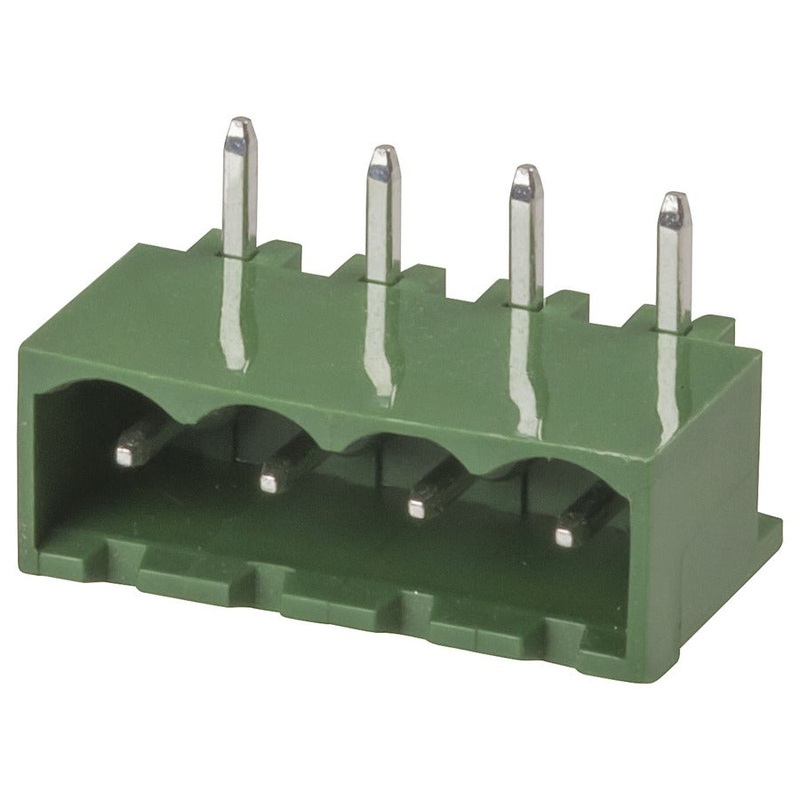

Sale! 4 Pole PC Mount Pluggable Terminal Block Socket – 5.08mm
$5.31
$5.90
Quick Overview
The plug version to suit the above headers - these terminal blocks are easily plugged in, and feature nickel- plated brass cage clamps, tin- plated phosphor- bronze contacts, M3 nickel- plated steelscrews...- POLES 4Specifications:TypeDouble Row HeaderDevi
- Satisfaction 100% Guaranteed
- Free shipping on orders over $30
- 60 day easy Return
The plug version to suit the above headers – these terminal blocks are easily plugged in, and feature nickel- plated brass cage clamps, tin- plated phosphor- bronze contacts, M3 nickel- plated steel
screws…
– POLES 4
Specifications:
| Type | Double Row Header |
| Device | Socket |
| Attachment Method | Screw Terminals |
| Number of Pins | 4pc |
| Pin Spacing | 5.08mm (0.2″) |
| Pack Quantity | 1pc |
| Pin Material | Tin Plated Brass |
| Pin Size | 1mm |
| Insulation Dielectric Voltage Rating | 2000V |
| Insulation Resistance | 5000M |
| AC Voltage rating | 300V |
| AC current rating | 12A |
| Mounting Method | Line |
| Width | 21.4mm |
| Cost: | $25 |
| Free Shipping | We offer free shipping on orders over $30. Please check the free - shipping eligibility at checkout. |
| Delivery Time: | It usually takes [3-5] business days for standard shipping. Please note that this is an estimated time frame and may be affected by local holidays, and unforeseen circumstances. |
