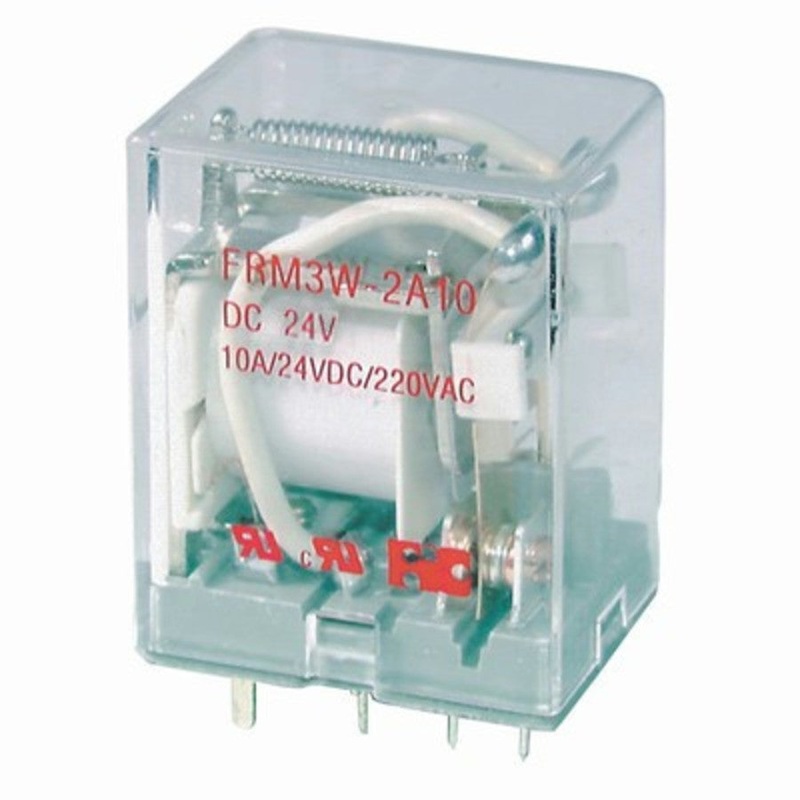

High power DPDT relay suitable for switching loads up to 10A. Designed to suit the SY-4064 DIN rail mounting cradle it can also be mounted directly into a PCB. Operational life: 20 million cycles
Specifications:
| DC Contact Voltage |
24V |
| Coil Resistance |
160 |
| Coil Current |
75mA |
| Device Type |
Cradle Mounting Relay |
| Input |
DC |
| Contact format |
DPDT |
| AC Contact Voltage |
240V |
| AC Switching Current (Opening) |
10A |
| DC Switching Current (Opening) |
10A |
| Nominal Voltage |
12V |
| Operation Time |
25ms |
| DC Voltage |
12V |
| DC Current Draw |
75mA |
| Mounting Method |
Cradle/Socket Mount,PCB |
| Length |
35mm |
| Width |
21.2mm |
| Height |
27.5mm |
